3D Structural Crack Monitoring

£350.00

Real-time precision for critical structural assets.

Standard "tell-tale" markers only show a fraction of the story.

Acuo’s 3D Crack Monitoring service provides a continuous, high-resolution data stream capturing movement across all three axes ($X, Y,$ and $Z$).

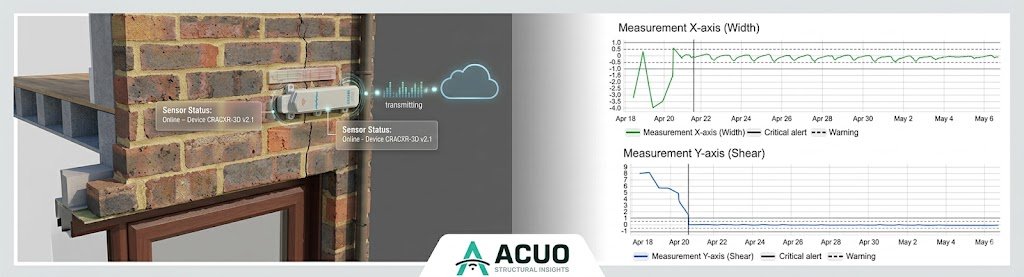

Using wireless IoT sensors (as shown in our live deployments), we provide a 24/7 "Structural EKG" for your building, bridge, or retaining wall.

Key Features of the Service:

  • Triaxial Precision: Simultaneous measurement of crack opening (width), shearing, and vertical displacement.

  • Zero-Power Infrastructure: Wireless sensors with 5-10 year battery life—no site power or cabling required.

  • Live Dashboard Access: View your data 24/7 via the secure Acuo Portal.

  • Instant Threshold Alerts: Automatic SMS and email notifications if movement exceeds your specified 'Amber' or 'Red' safety limits.

  • Thermal Correlation: Our sensors track ambient temperature to distinguish between natural thermal expansion and genuine structural failure.

Real-time precision for critical structural assets.

Standard "tell-tale" markers only show a fraction of the story.

Acuo’s 3D Crack Monitoring service provides a continuous, high-resolution data stream capturing movement across all three axes ($X, Y,$ and $Z$).

Using wireless IoT sensors (as shown in our live deployments), we provide a 24/7 "Structural EKG" for your building, bridge, or retaining wall.

Key Features of the Service:

  • Triaxial Precision: Simultaneous measurement of crack opening (width), shearing, and vertical displacement.

  • Zero-Power Infrastructure: Wireless sensors with 5-10 year battery life—no site power or cabling required.

  • Live Dashboard Access: View your data 24/7 via the secure Acuo Portal.

  • Instant Threshold Alerts: Automatic SMS and email notifications if movement exceeds your specified 'Amber' or 'Red' safety limits.

  • Thermal Correlation: Our sensors track ambient temperature to distinguish between natural thermal expansion and genuine structural failure.

3.5D & 3D Structural Crack Monitoring Services

Real-Time Displacement Tracking & Structural Health Insights

Structural movement doesn't happen in a vacuum. To truly understand a building's integrity, you need to see the full picture. At Acuo, we provide advanced 3D Crack Monitoring services that go beyond traditional manual inspections. Using state-of-the-art wireless sensors, we deliver continuous, high-precision data on crack width, shear, and vertical displacement.

Why Choose Automated 3D Monitoring?

Manual "tell-tale" gauges are prone to human error and only provide a snapshot in time. Our automated Structural Health Monitoring (SHM) system offers a 24/7 "live" pulse of your asset, ensuring safety during:

  • Basement Excavations & Substructure Works

  • Party Wall Disputes & Pre-Construction Surveys

  • Heritage & Grade-listed Building Protection

  • Tunnelling and Infrastructure Development

Technical Capabilities

Our wireless sensor nodes are designed for the toughest UK construction environments, offering:

  • Triaxial Measurement ($X, Y, Z$): We track crack opening, shearing, and vertical slip simultaneously to detect the exact vector of movement.

  • Sub-Millimeter Precision: High-resolution sensors detect movement as small as 0.001mm, providing an early warning before visual damage occurs.

  • Thermal Correlation: Our AI-driven analytics distinguish between harmless thermal expansion and critical structural shifts.

  • Long-Range Wireless (LoRaWAN): Sensors operate on long-life batteries (up to 10 years) with no need for site power or complex cabling.

The Acuo Digital Portal: Data at Your Fingertips

When you commission Acuo for 3D Monitoring, you don't just get a report at the end of the month. You get access to our Real-Time Data Dashboard:

  1. Live Visualisation: View 3D displacement graphs and structural "heatmaps" from any device.

  2. Instant Alerts: Automated SMS and Email notifications are triggered the moment a pre-set "Amber" or "Red" threshold is breached.

  3. Automated Compliance Reporting: Generate professional PDF health reports for stakeholders, insurers, and local authorities at the click of a button.

Protect Your Project with Acuo Structural Insights

Don't leave structural safety to chance. Our 3D Crack and Tilt Monitoring provides the empirical evidence needed to mitigate risk, satisfy insurance requirements, and protect adjacent properties.

Contact our Engineering Team for a Technical Quote

Read our 3D Monitoring Case Study
